800V 16kwh Module HV High Voltage ESS lithium Battery Pack off grid

Product Categories
Deligreen Power Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

800V 16kwh Module HV High Voltage ESS lithium Battery Pack off grid

  • 1
  • 2

Brand Name : Deligreen

Model Number : 128kwh

Certification : CE,UN 38.3 MSDS

Place of Origin : China

MOQ : 1

Payment Terms : T/T, , D/P,

Packaging Details : Wooden crate

Model : 51.2V 314ah

Capacity : 314Ah

Voltage : 48V,51.2V

Voltage range : 46.4-57.9V

System operating voltage : 330V-450V

Charge/discharge current : 160A,max 200A

Dimension : 771*550*200mm W*D*H

N.W. : 118 Kgs

Communication : CAN,RS485

Contact Now

Cell Chemistry LiFePO4
Module Energy 16.08kWh
Module Nominal Voltage 51.2V
Module Capacity 314Ah
Module Dimension 771*550*200(W/D/H,mm)
Module Weight Approximate 118kg
5 (Optional) 6 (Optional) 7 (Optional) 8 (Optional) 9 (Optional) 10 (Optional) 11 (Optional) 12 (Optional) 13 (Optional) 14 (Optional)
### Battery Module
Qty In Series 5 6 7 8 9 10 11 12 13 14
System Nominal Voltage 256V 307.2V 358.4V 409.6V 460.8V 512V 563.2V 614.4V 665.6V 716.8V
System Operating Voltage 232~288V 278.4~345.6V 324.8~403.2V 371.2~460.8V 417.6~518.4V 464~576V 510.4~633.6V 556.8~691.2V 603.2~748.8V 649.6~806.4V
### System Energy
System Energy 80.38kWh 96.46kWh 112.54kWh 128.61kWh 144.69kWh 160.77kWh 176.84kWh 192.92kWh 209kWh 225.08kWh
### System Usable Energy (kWh)
(90%DOD) 72.34 86.81 101.29 115.75 130.22 144.69 159.16
Charge/Discharge Current
Recommend 160A
Max 200A
Working Temperature -10~55°C
Cooling Mode Fan Cooling
Communication Port CAN/RS485
Humidity 5%~95%RH
Altitude ≤2000m
IP Rating of Enclosure IP20
Dimension (W/D/H,mm) 776*577*1 776*577*1 776*2*57 776*2*57 776*2*57 777*2*57 777*2*57 777*2*575 777*2*575 777*3*57
Weight Approximate 505 725 7*1065 7*1285 7*1285 7*1505 7*1505 7*1725 7*1725 7*1285
Weight Approximate 660kg 782kg 904kg 1076kg 1198kg 1320kg 1442kg 1564kg 1666kg 1808kg
### Stack Mounting, Iron Frame Mounting
Installation Location 0~35°C
Storage Temperature 90%
Recommend Depth of Discharge ≥8000 times
Cycle Life ≥8000 times
Warranty 5+5 years
Certification CE, MSDS, UN38.3

800V 16kwh Module HV High Voltage ESS lithium Battery Pack off grid


Product Tags:

800V high voltage lithium battery



16kWh off grid battery pack



HV ESS lithium battery module


Quality 800V 16kwh Module HV High Voltage ESS lithium Battery Pack off grid for sale

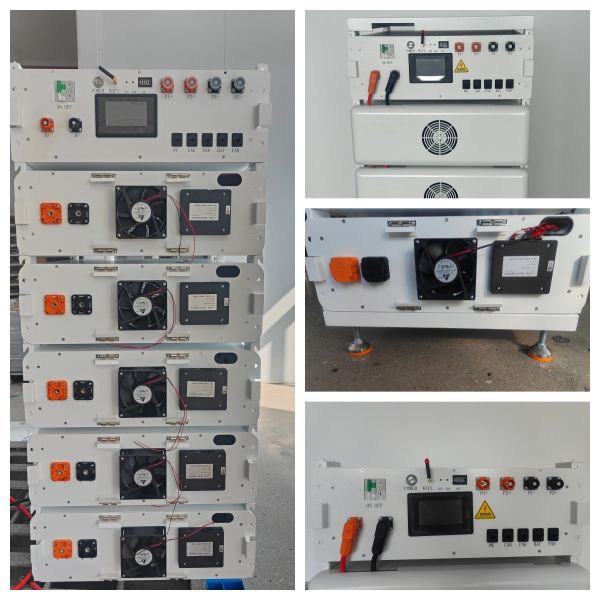

800V 16kwh Module HV High Voltage ESS lithium Battery Pack off grid Images
